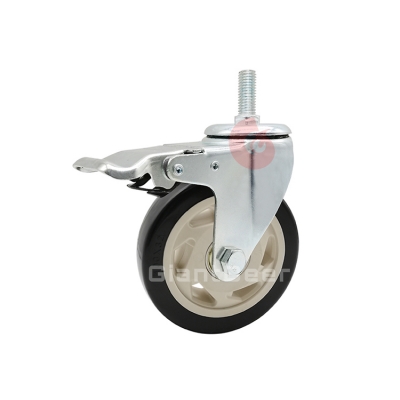

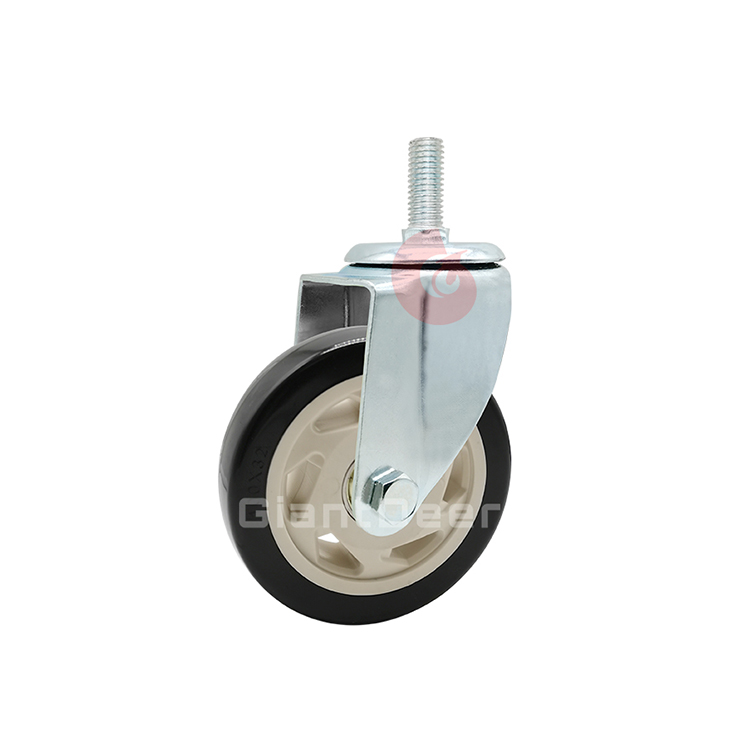

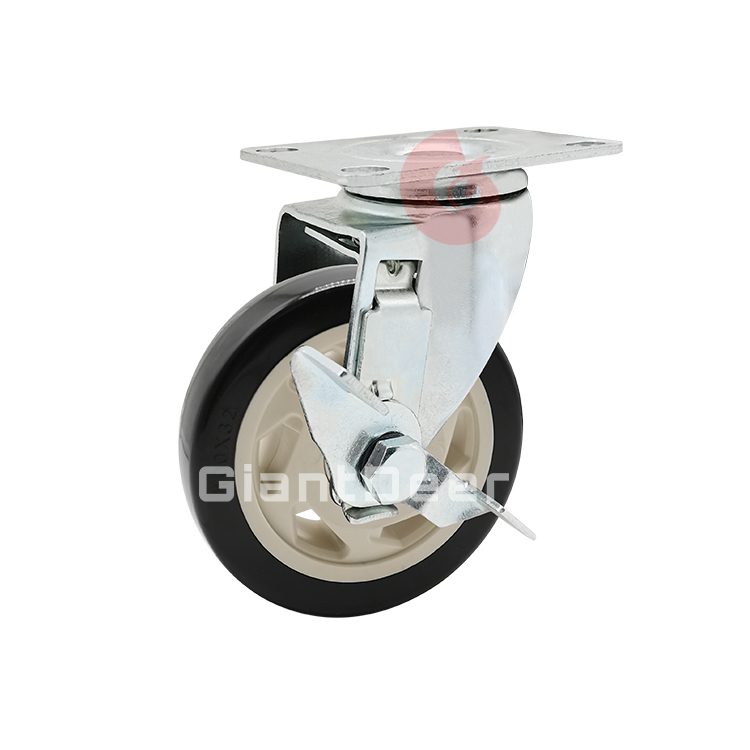

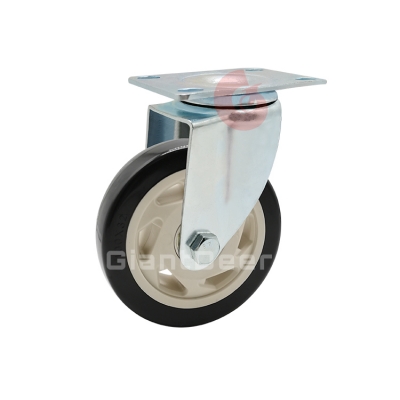

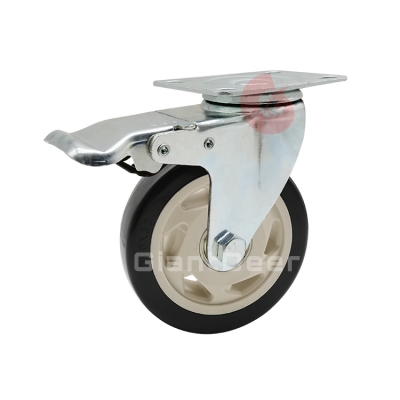

We are specialized in Medium Duty PVC Caster Wheel, which integrates research and development, design, production, quality control and marketing.
PVC
Galvanized iron
3Inch/4Inch/5Inch
32mm
85kg/100kg/115kg
105mm/129mm/155mm
94x64mm
74x45mm
8.5mm
Swivel type with Brake
| Model |
Wheel Material
|
Wheel Diameter (mm) |
Wheel Width (mm) |
Loading Height (mm) |
Top Plate Size (mm) |
Hole Spacing Size (mm) |
Mounting Hole Size (mm) |
Loading Capacity (kg) |
GIDM08-3IN- FSB | PVC | 75 | 32 | 105 | 94*64 | 74*45 | 8.5 | 85 |
GIDM08-4IN- FSB | PVC | 100 | 32 | 129 | 94*64 | 74*45 | 8.5 | 100 |
GIDM08-5IN- FSB | PVC | 125 | 32 | 155 | 94*64 | 74*45 | 8.5 | 115 |
Additional information
√ Wheel Color: Black, customized.
√ Metal Fork Color: Silver, customized.
√ Plate Size: Regular, customized.
√ Wheel Material: PVC, customized.
√ Metal Fork Material: Galvanized iron, customized.
