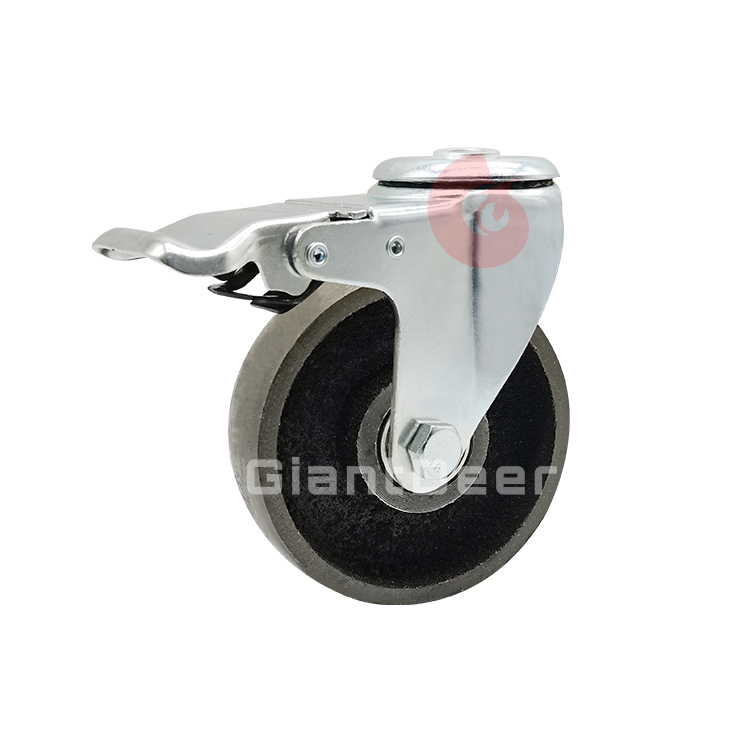

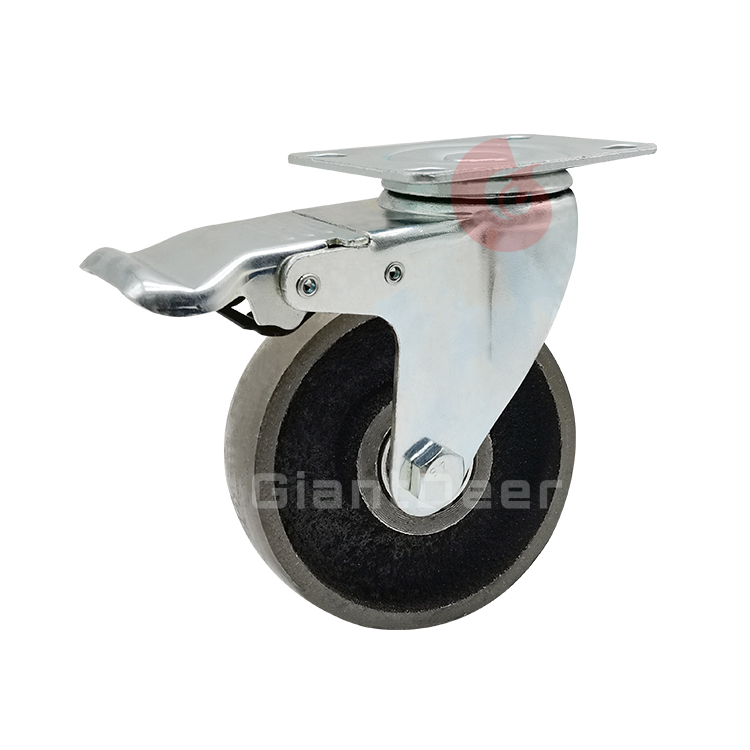

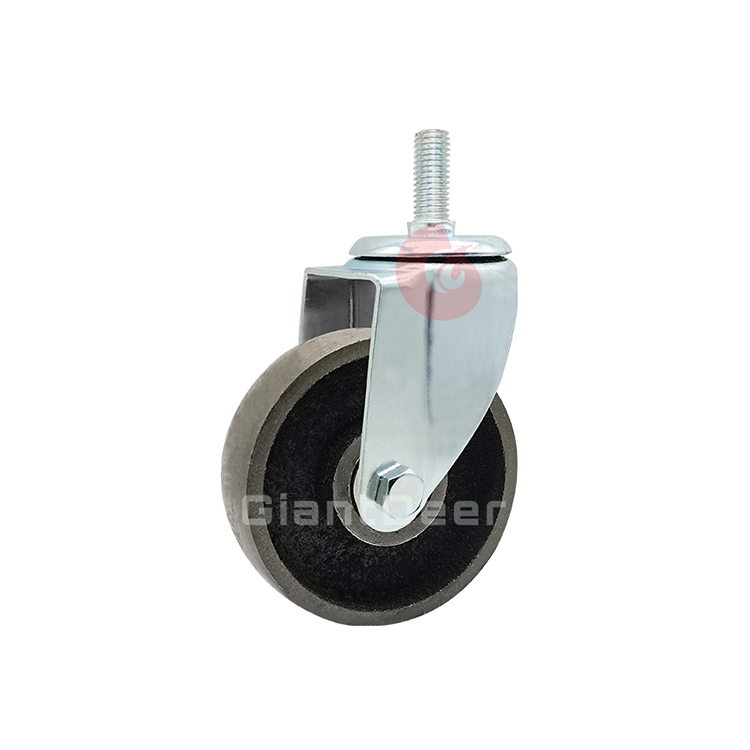

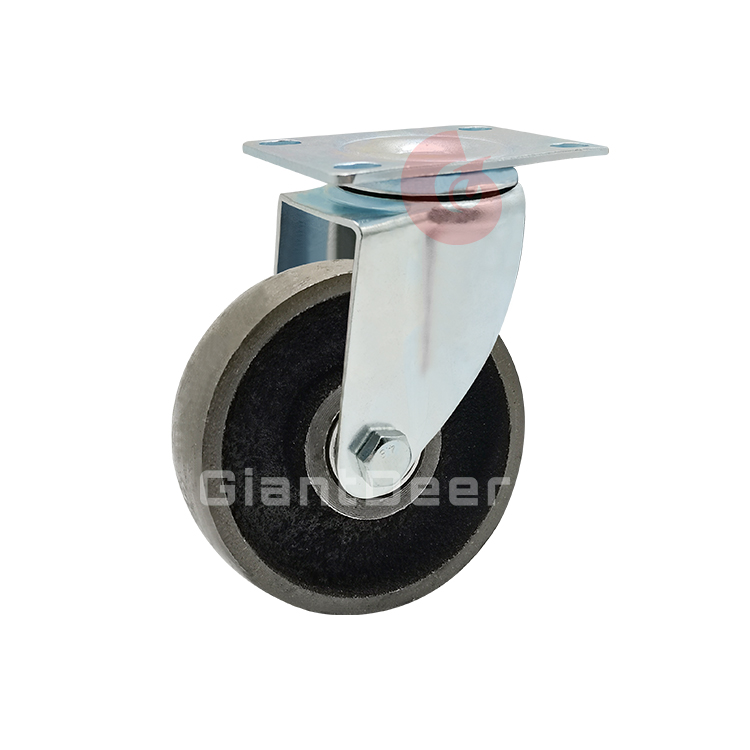

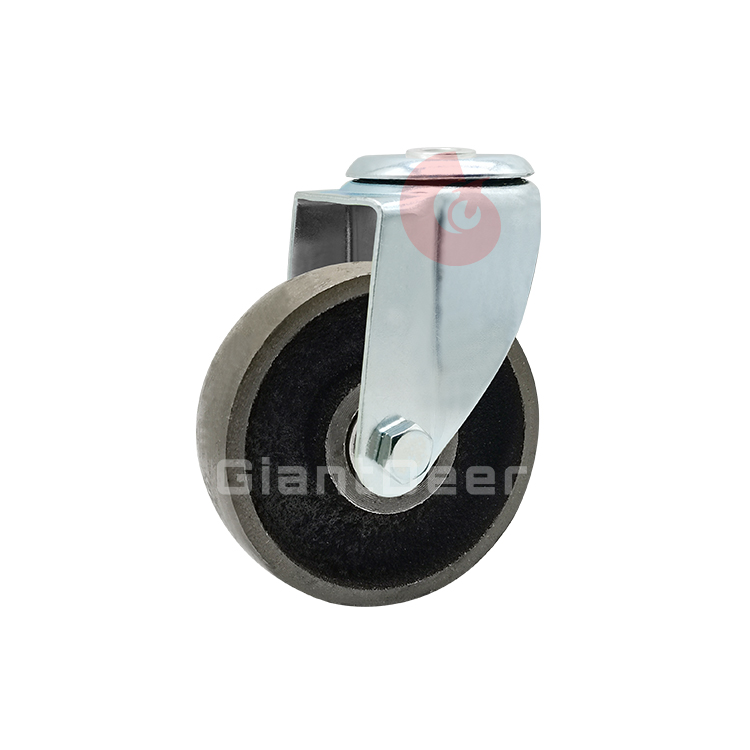

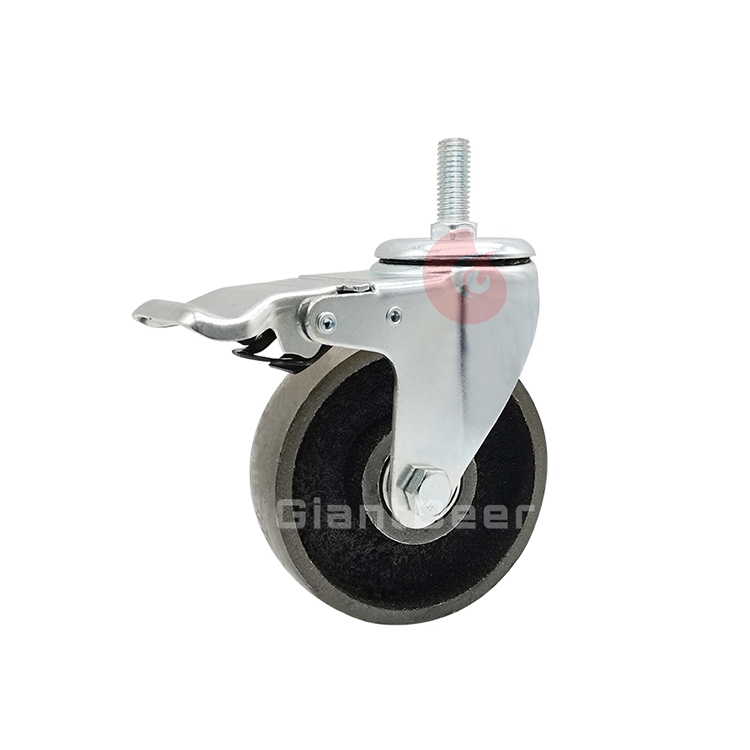

We are specialized in Medium Duty Cast Iron Caster Wheel, which integrates research and development, design, production, quality control and marketing.
Cast Iron
Galvanized iron
2.5Inch/3Inch/4Inch/5Inch
32mm
90kg/110kg/125kg/135kg
90mm/105mm/129mm/155mm
12.5mm
Swivel type
| Model |
Wheel Material
|
Wheel Diameter (mm) |
Wheel Width (mm) |
Loading Height (mm) |
Bolt Hole Diameter (mm) |
Loading Capacity (kg) |
| GIDM10-2.5IN-BU | Cast Iron | 65 | 32 | 90 | 12.5 | 90 |
| GIDM10-3IN-BU | Cast Iron | 75 | 32 | 105 | 12.5 | 110 |
| GIDM10-4IN-BU | Cast Iron | 100 | 32 | 129 | 12.5 | 125 |
| GIDM10-5IN-BU | Cast Iron | 125 | 32 | 155 | 12.5 | 135 |
Additional information
√ Wheel Color: Black, customized.
√ Metal Fork Color: Silver, customized.
√ Bolt Hole Diameter: Regular, customized.
√ Wheel Material: Cast Iron, customized.
√ Metal Fork Material: Galvanized iron, customized.
