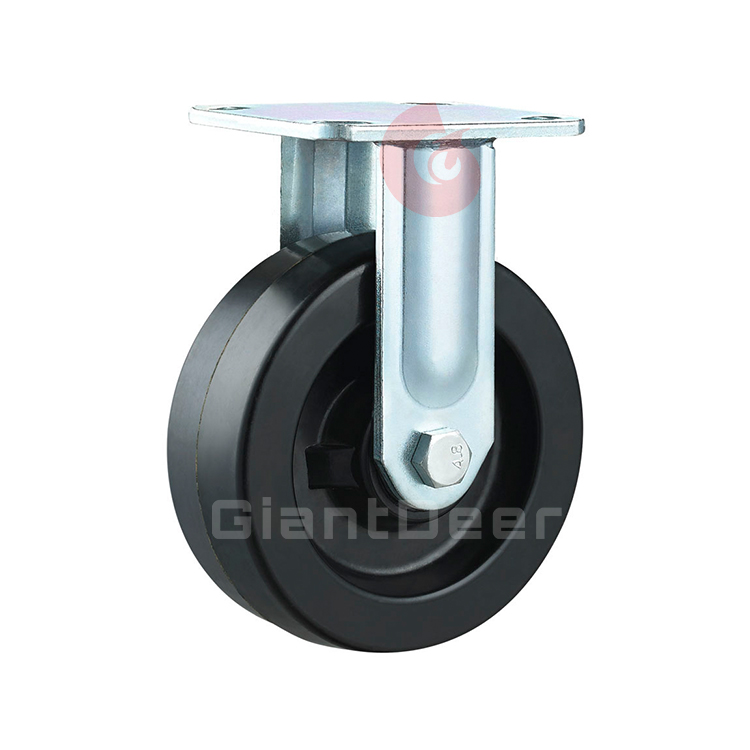

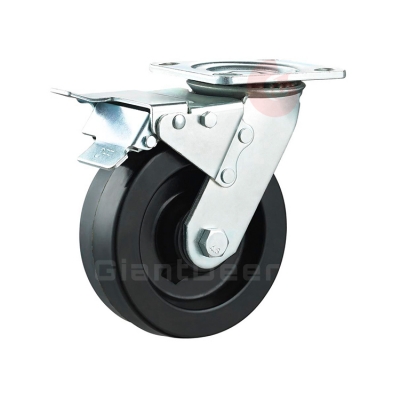

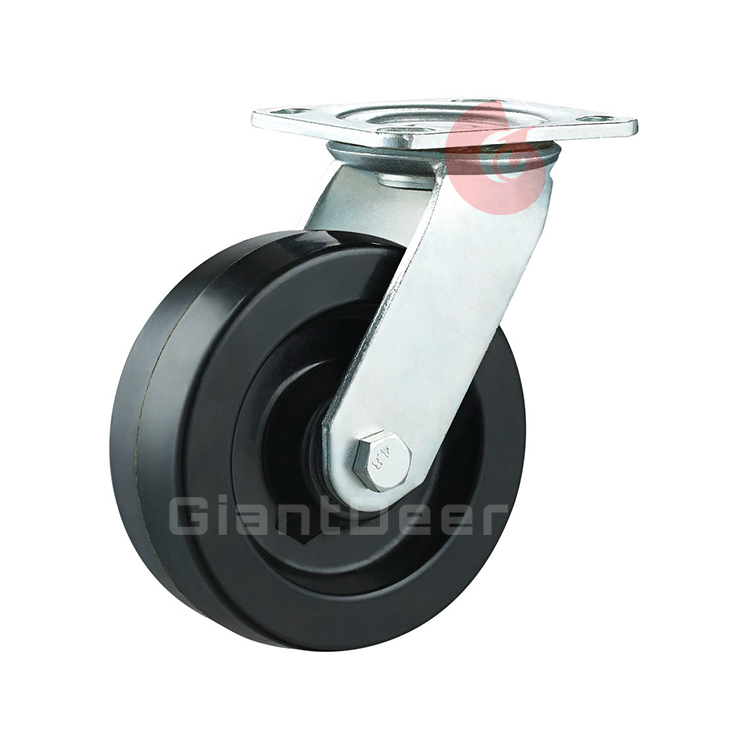

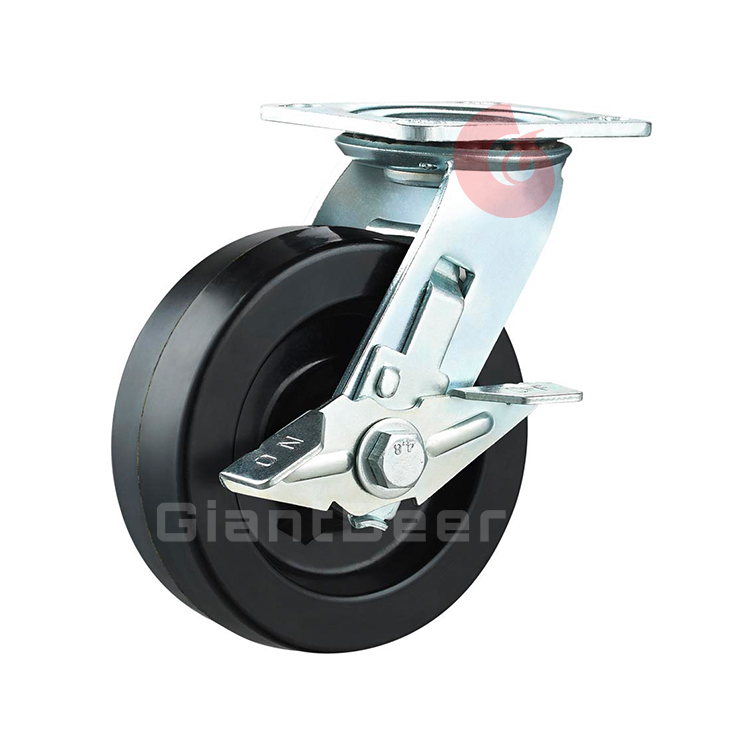

We are specialized in Heavy Duty High-Temp Phenolic Caster Wheel, which integrates research and development, design, production, quality control and marketing.
High-Temp Phenolic
Galvanized iron
4Inch/5Inch/6Inch/8Inch
50mm
250kg/300kg/350kg/400kg
144mm/165mm/191mm/242mm
115x100mm
84x71mm
11mm
Swivel type with Brake
| Model |
Wheel Material
|
Wheel Diameter (mm) |
Wheel Width (mm) |
Loading Height (mm) |
Top plate Size (mm) |
Hole spacing size (mm) |
Mounting Hole size (mm) |
Loading Capacity (kg) |
GIDH03-4IN- FSB | High-Temp Phenolic | 100 | 50 | 144 | 115*100 | 84*71 | 11 | 250 |
GIDH03-5IN- FSB | High-Temp Phenolic | 125 | 50 | 165 | 115*100 | 84*71 | 11 | 300 |
GIDH03-6IN- FSB | High-Temp Phenolic | 150 | 50 | 191 | 115*100 | 84*71 | 11 | 350 |
GIDH03-8IN- FSB | High-Temp Phenolic | 200 | 50 | 242 | 115*100 | 84*71 | 11 | 400 |
Additional information
√ Wheel Color: Black, customized.
√ Metal Fork Color: Silver, customized.
√ Plate Size: Regular, customized.
√ Wheel Material: High-Temp Phenolic, customized.
√ Metal Fork Material: Galvanized iron, customized.
