We are specialized in Heavy Duty PVC Caster Wheel, which integrates research and development, design, production, quality control and marketing.
PVC
Galvanized iron
4Inch/5Inch/6Inch/8Inch
50mm
140kg/200kg/220kg/250kg
144mm/165mm/191mm/242mm
115x100mm
84x71mm
11mm

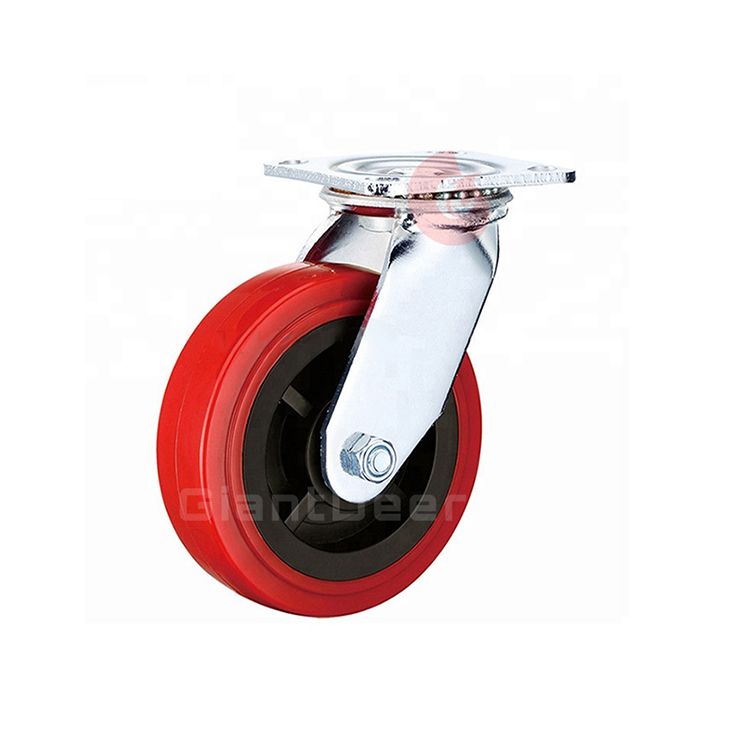

Swivel type
| Model |
Wheel Material
|
Wheel Diameter (mm) |
Wheel Width (mm) |
Loading Height (mm) |
Top plate Size (mm) |
Hole spacing size (mm) |
Mounting Hole size (mm) |
Loading Capacity (kg) |
GIDH05-4IN- FU | PVC | 100 | 50 | 144 | 115*100 | 84*71 | 11 | 140 |
GIDH05-5IN- FU | PVC | 125 | 50 | 165 | 115*100 | 84*71 | 11 | 200 |
GIDH05-6IN- FU | PVC | 150 | 50 | 191 | 115*100 | 84*71 | 11 | 220 |
GIDH05-8IN- FU | PVC | 200 | 50 | 242 | 115*100 | 84*71 | 11 | 250 |
Additional information
√ Wheel Color: Red, customized.
√ Metal Fork Color: Silver, customized.
√ Plate Size: Regular, customized.
√ Wheel Material: PVC, customized.
√ Metal Fork Material: Galvanized iron, customized.
