We are specialized in Heavy Duty Cast Iron Caster Wheel, which integrates research and development, design, production, quality control and marketing.
Cast Iron
Galvanized iron
4Inch/5Inch/6Inch/8Inch
50mm
300kg/350kg/400kg/450kg
144mm/165mm/191mm/242mm
115x100mm
84x71mm
11mm

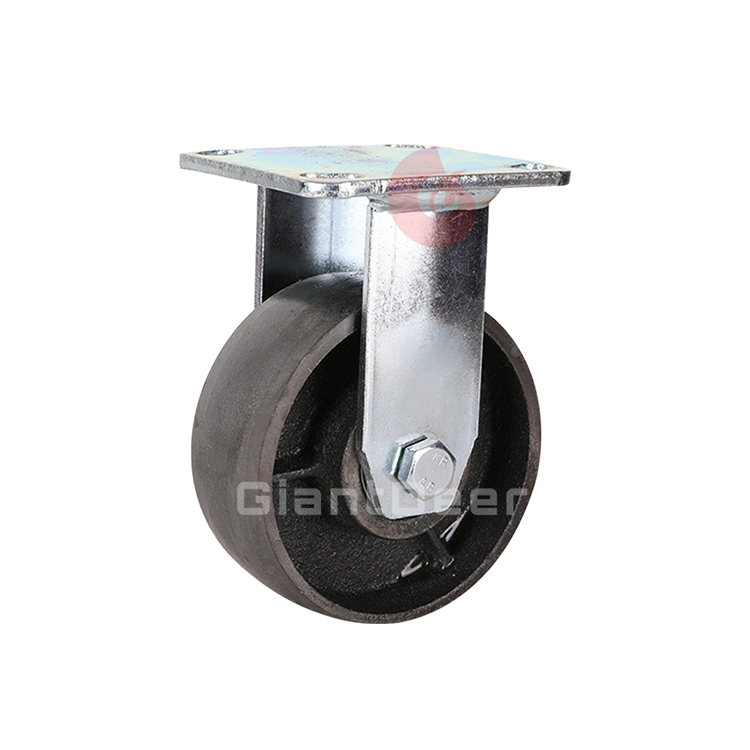

Fixed type
| Model |
Wheel Material
|
Wheel Diameter (mm) |
Wheel Width (mm) |
Loading Height (mm) |
Top plate Size (mm) |
Hole spacing size (mm) |
Mounting Hole size (mm) |
Loading Capacity (kg) |
GIDH12-4IN- DT | Cast Iron | 100 | 50 | 144 | 115*100 | 84*71 | 11 | 300 |
GIDH12-5IN- DT | Cast Iron | 125 | 50 | 165 | 115*100 | 84*71 | 11 | 350 |
GIDH12-6IN- DT | Cast Iron | 150 | 50 | 191 | 115*100 | 84*71 | 11 | 400 |
GIDH12-8IN- DT | Cast Iron | 200 | 50 | 242 | 115*100 | 84*71 | 11 | 450 |
Additional information
√ Wheel Color: Black, customized.
√ Metal Fork Color: Silver, customized.
√ Plate Size: Regular, customized.
√ Wheel Material: Cast Iron, customized.
√ Metal Fork Material: Galvanized iron, customized.
