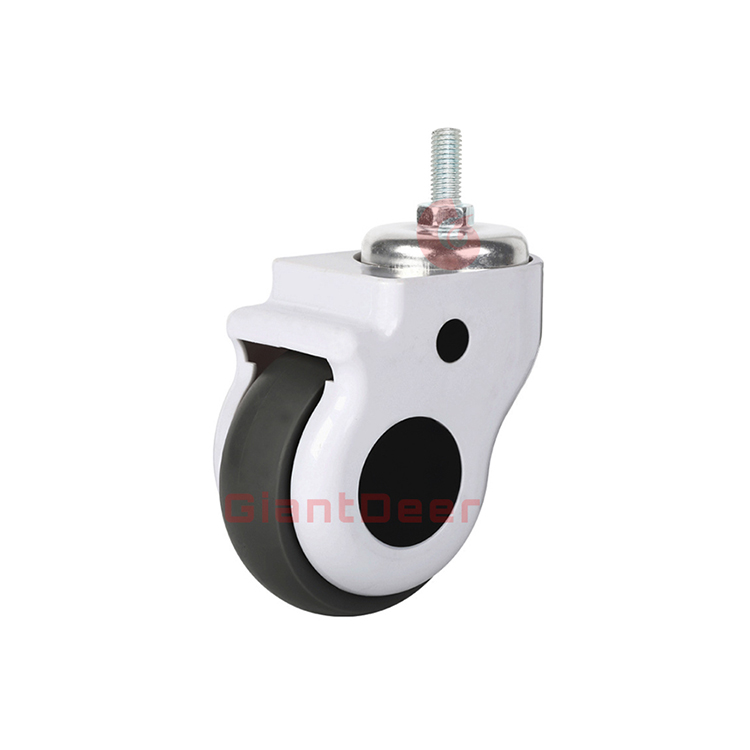

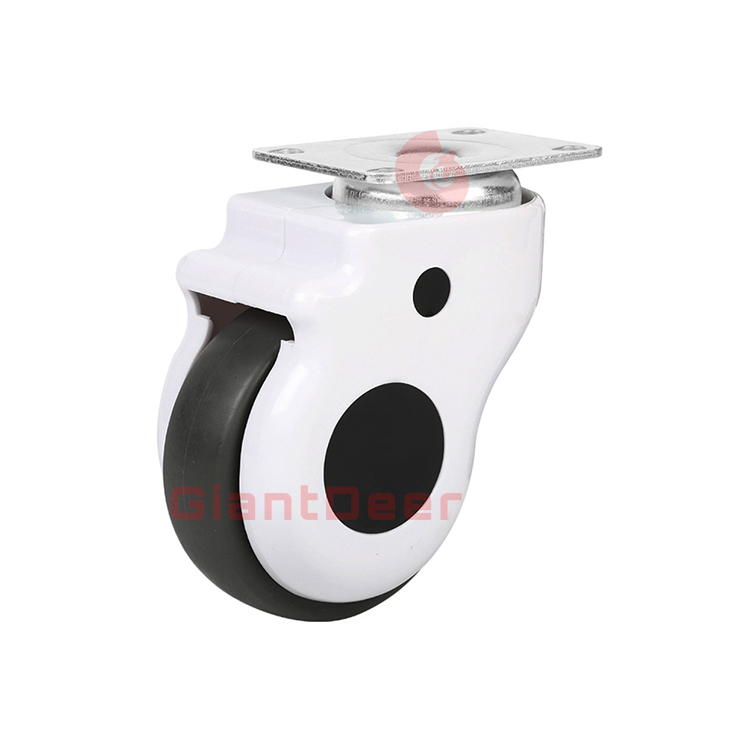

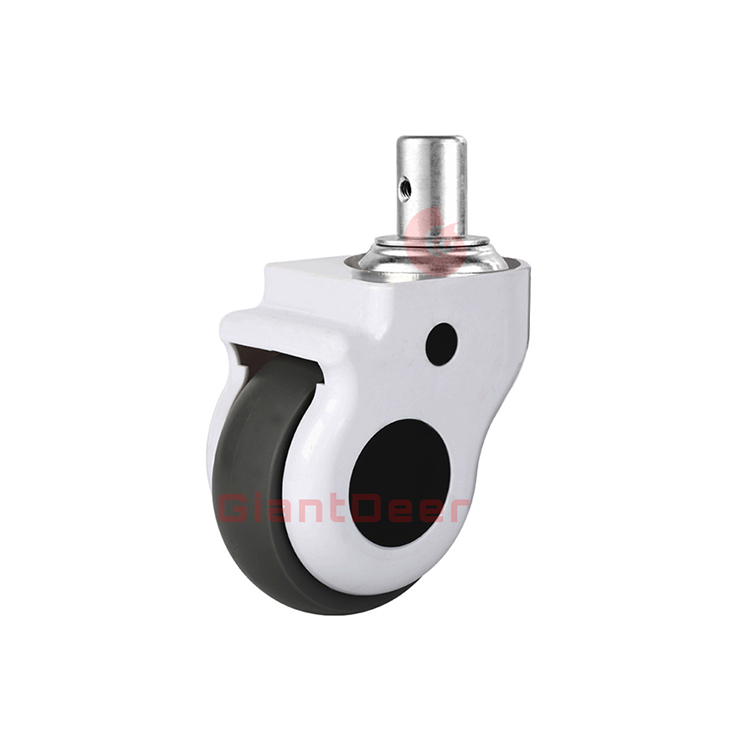

We are specialized in Medical Caster Wheel, which integrates research and development, design, production, quality control and marketing.
TPR
Galvanized iron
3Inch/4Inch/5Inch
32mm
75kg/90kg/110kg
108mm/133mm/158mm
95x63mm
75x45 mm
8.5mm

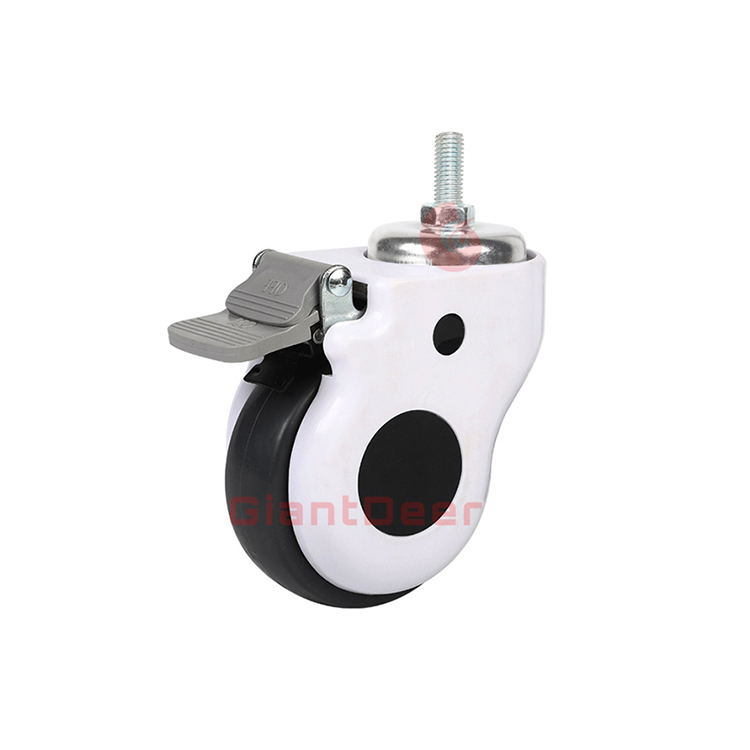

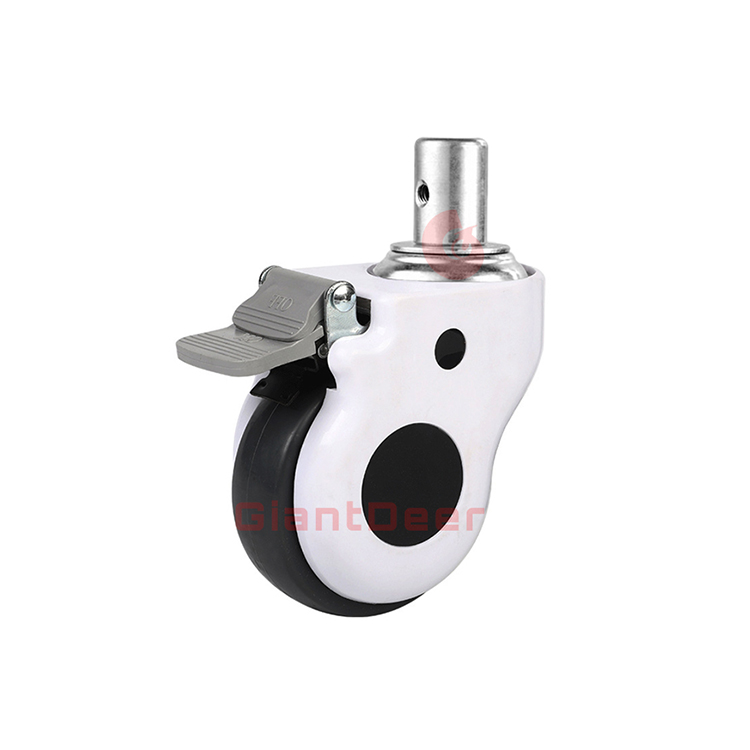

Swivel type with brake
| Model |
Wheel Material
|
Wheel Diameter (mm) |
Wheel Width (mm) |
Loading Height (mm) |
Top Plate Size (mm) |
Hole Spacing Size (mm) |
Mounting Hole Size (mm) |
Loading Capacity (kg) |
| GIDMED06-3IN-FDB | TPR | 75 | 32 | 108 | 95*63 | 75*45 | 8.5 | 75 |
| GIDMED06-4IN-FDB | TPR | 100 | 32 | 133 | 95*63 | 75*45 | 8.5 | 90 |
| GIDMED06-5IN-FDB | TPR | 125 | 32 | 158 | 95*63 | 75*45 | 8.5 | 110 |
Additional information
√ Wheel Color: White and Black, customized.
√ Metal Fork Color: Silver, customized.
√ Plate Size: Regular, customized.
√ Wheel Material: TPR, customized.
√ Metal Fork Material: Galvanized iron, customized.
