We are specialized in Medical Caster Wheel, which integrates research and development, design, production, quality control and marketing.
TPR
Galvanized iron
3Inch/4Inch/5Inch
56mm/70mm/84mm
60kg/70kg/90kg
102mm/125mm/155mm
70x58mm/80x68mm/90x75mm
53x40mm/53x43mm/65x52mm
8.5mm

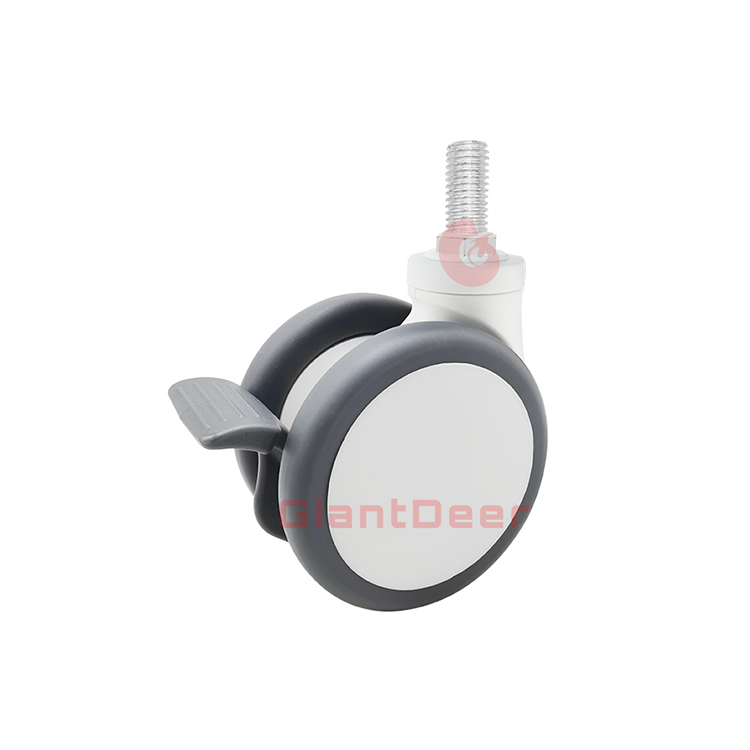

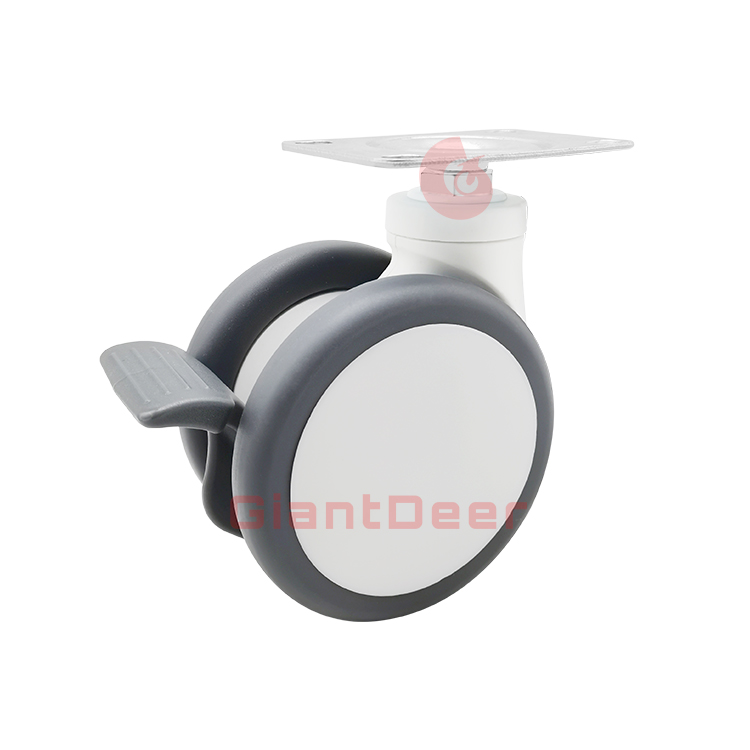

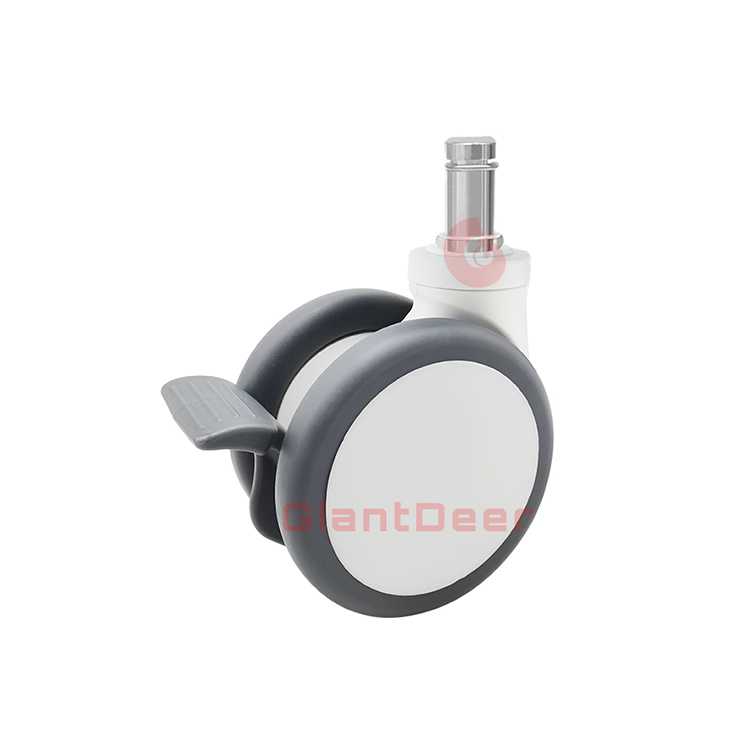

Swivel type with brake
| Model |
Wheel Material
|
Wheel Diameter (mm) |
Wheel Width (mm) |
Loading Height (mm) |
Top Plate Size (mm) |
Hole Spacing Size (mm) |
Mounting Hole Size (mm) |
Loading Capacity (kg) |
| GIDMED05-3IN-FDB | TPR | 75 | 56 | 102 | 70*58 | 53*40 | 8.5 | 60 |
| GIDMED05-4IN-FDB | TPR | 100 | 70 | 125 | 80*68 | 53*43 | 8.5 | 70 |
| GIDMED05-5IN-FDB | TPR | 125 | 84 | 155 | 90*75 | 65*52 | 8.5 | 90 |
Additional information
√ Wheel Color: White and Black, customized.
√ Metal Fork Color: Silver, customized.
√ Plate Size: Regular, customized.
√ Wheel Material: TPR, customized.
√ Metal Fork Material: Galvanized iron, customized.
