We are specialized in Light Duty Cast Iron Caster Wheel, which integrates research and development, design, production, quality control and marketing.
Cast Iron
Galvanized iron
1.5Inch/2Inch/2.5Inch/3Inch
17mm/20mm/27mm/27mm
25kg/35kg/55kg/65kg
50mm/65mm/84mm/93mm
M6/8/10/12 x 15/25mm

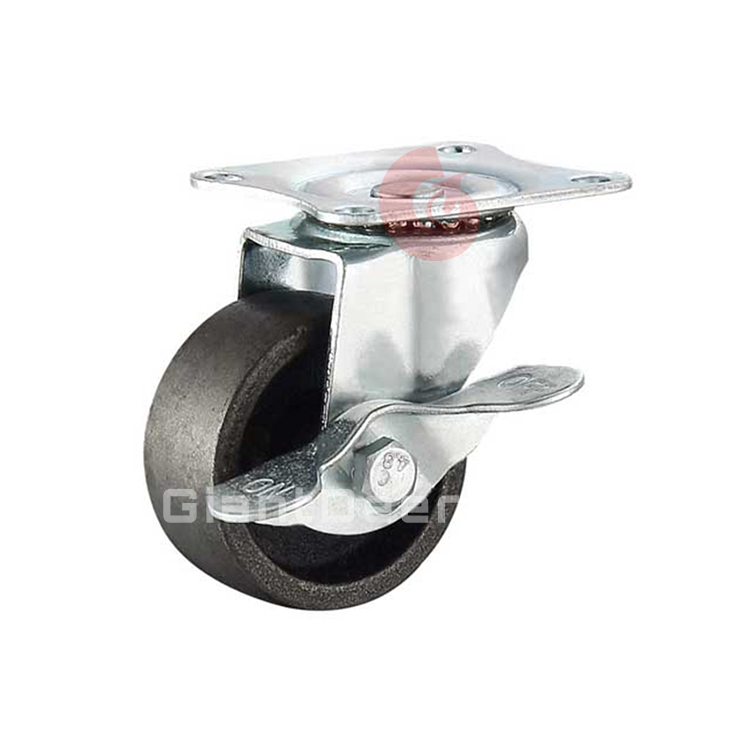

Swivel type with Brake
| Model |
Wheel Material
|
Wheel Diameter (mm) |
Wheel Width (mm) |
Loading Height (mm) |
Screw Stem Size (mm) |
Loading Capacity (kg) |
GIDL09-1.5IN -SSB | Cast Iron | 40 | 17 | 50 | M6/8/10*15 | 25 |
GIDL09-2IN -SSB | Cast Iron | 50 | 20 | 65 | M8/10*15 | 35 |
GIDL09-2.5IN -SSB | Cast Iron | 65 | 27 | 84 | M10/12*25 | 55 |
GIDL09-3IN -SSB | Cast Iron | 75 | 27 | 93 | M10/12*25 | 65 |
Additional information
√ Wheel Color: Black.
√ Metal Fork Color: Silver, customized.
√ Screw Stem Size: Regular, customized.
√ Wheel Material: Cast Iron, customized.
√ Metal Fork Material: Galvanized iron, customized.
