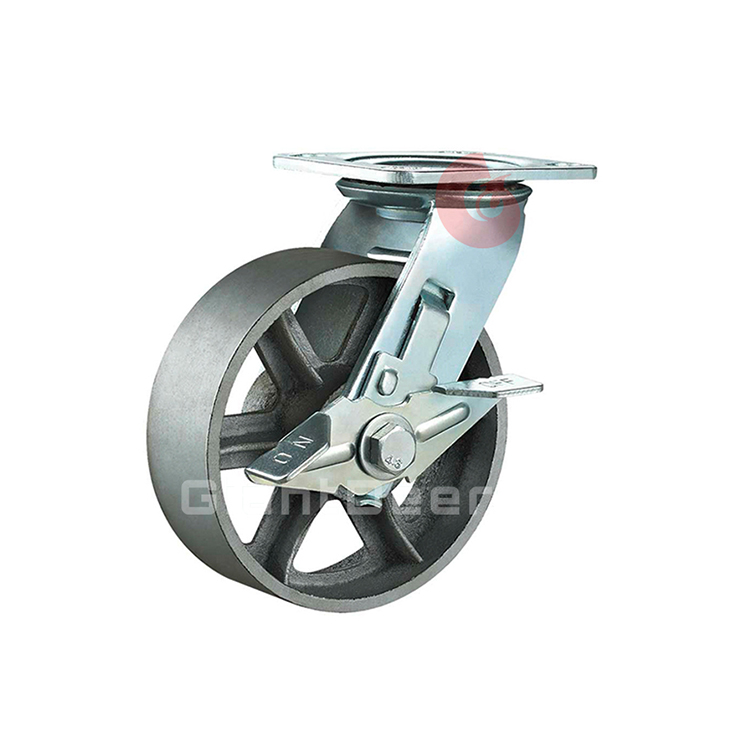

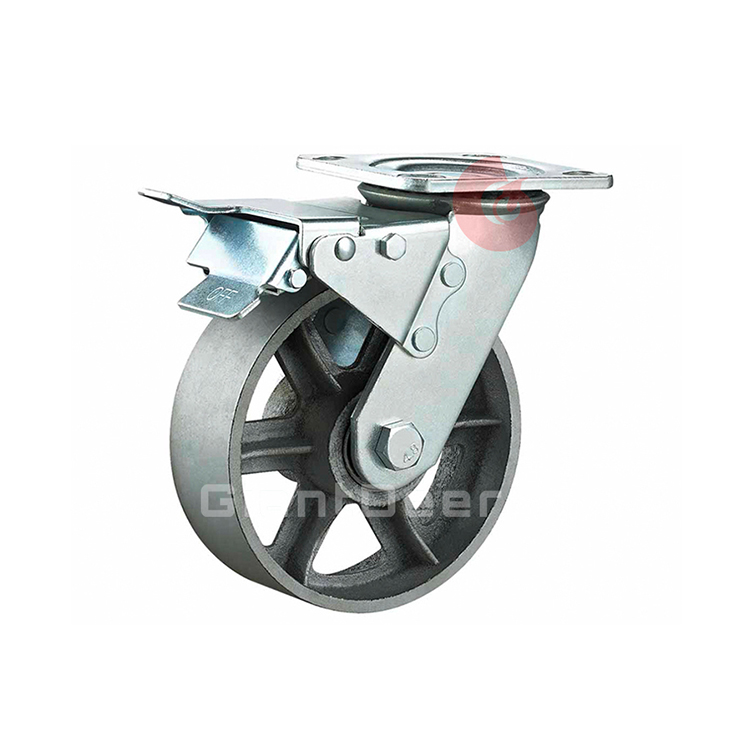

Heavy Duty Castor 4 Inch 5 Inch 6 Inch 8 Inch Swivel Cast Iron Castor Wheel with Brake

We are specialized in Heavy Duty Cast Iron Caster Wheel, which integrates research and development, design, production, quality control and marketing.

Cast Iron

Galvanized iron

4Inch/5Inch/6Inch/8Inch

50mm

270kg/320kg/380kg/430kg

144mm/165mm/191mm/242mm

115x100mm

84x71mm

11mm

Swivel type with brake

Description
Model

Wheel Material



3

Wheel Diameter

(mm)

Wheel

Width

(mm)

Loading Height

(mm)

Top plate Size

(mm)

Hole spacing size

(mm)

1

Mounting Hole size

(mm)

1

Loading Capacity

(kg)

GIDH18-4IN-

FDB

Cast Iron

10050144115*10084*7111270

GIDH18-5IN-

FDB

Cast Iron

12550165115*10084*7111320

GIDH18-6IN-

FDB

Cast Iron

15050191115*10084*7111380

GIDH18-8IN-

FDB

Cast Iron

20050242115*10084*7111430

Additional information


 Wheel Color: Silver, customized.

 Metal Fork Color: Silver, customized.

 Plate Size: Regular, customized.

 Wheel Material: Cast Iron, customized.

 Metal Fork Material: Galvanized iron, customized.
