We are specialized in Low Profile Heavy Duty Nylon Caster Wheel, which integrates research and development, design, production, quality control and marketing.
Nylon
Galvanized iron
2Inch/2.5Inch/3Inch
32mm/40mm/46mm
100kg/200kg/250kg
72mm/93mm/105mm
71x54mm/95x68mm/105x80mm
53x36mm/74x45mm/83x60mm
8.2mm

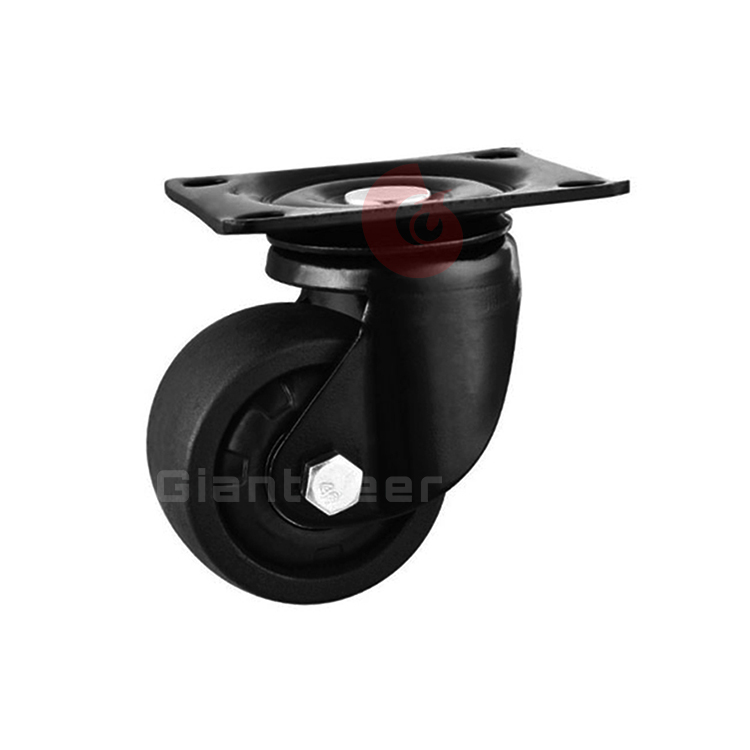

Swivel type with brake
Model | Wheel Material
| Wheel Diameter (mm) | Wheel Width (mm) | Loading Height (mm) | Top Plate Size (mm) | Hole Spacing Size (mm) | Mounting Hole Size (mm) | Loading Capacity (kg) |
GIDLG02-2IN- FDB | Nylon | 50 | 32 | 72 | 71*54 | 53*36 | 8.2 | 100 |
GIDLG02- 2.5IN-FDB | Nylon | 65 | 40 | 93 | 95*68 | 74*45 | 8.2 | 200 |
GIDLG02-3IN- FDB | Nylon | 75 | 46 | 105 | 105*80 | 83*60 | 8.2 | 250 |
Additional information
√ Wheel Color: Black, customized.
√ Metal Fork Color: Black, customized.
√ Plate Size: Regular, customized.
√ Wheel Material: Nylon, customized.
√ Metal Fork Material: Galvanized iron, customized.
