We are specialized in Light Duty PVC Caster Wheel, which integrates research and development, design, production, quality control and marketing.
PVC
Black electroplating iron
1.5Inch/2Inch/2.5Inch
22mm/25mm/30mm
30kg/40kg/60kg
60x43mm/70x51mm/92x65mm
45x30mm/53x35mm/73x45mm
6.3mm/8mm/8.5mm
Swivel type

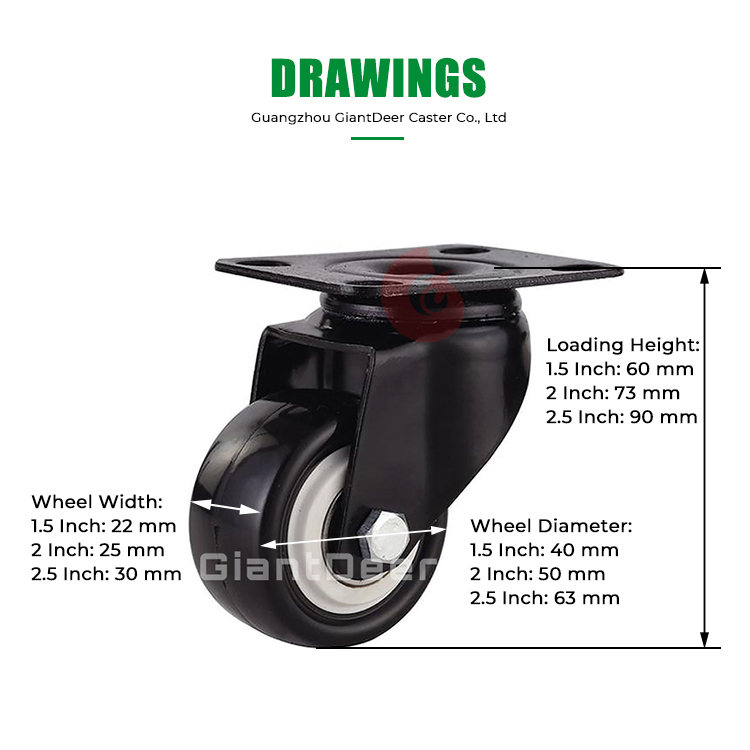

| Model |
Wheel Material |  Wheel Diameter (mm) |
Wheel Width (mm) |  Loading Height (mm) |  Top Plate Size (mm) |
Hole Spacing Size (mm) |
Mounting Hole Size (mm) |
Loading Capacity (kg) |
| GIDL01-1.5IN-FU | PVC | 40 | 22 | 60 | 60*43 | 45*30 | 6.3 | 30 |
GIDL01-2IN-FU | PVC | 50 | 25 | 73 | 70*51 | 53*35 | 8.0 | 40 |
| GIDL01-2.5IN-FU | PVC | 63 | 30 | 90 | 92*65 | 73*45 | 8.5 | 60 |
√ Wheel Color: Black, Red, Orange, Blue, customized.
√ Metal Fork Color: Black, customized.
√ Bearings: With double ball bearings.
√ Plate Size: Regular, customized.
√ Wheel Material: PVC, customized.
√ Metal Fork Material: Black electroplating iron, customized.
