We are specialized in Light Duty PU Caster Wheel, which integrates research and development, design, production, quality control and marketing.
PU
Galvanized iron
1Inch/1.25Inch/1.5Inch/2Inch/2.5Inch/3Inch
12mm/14mm/17mm/20mm/27mm/27mm
10kg/18kg/25kg/35kg/55kg/65kg
38x20mm/42x24mm/60x40mm/70x48mm
30mm/36x15 mm/45x25mm/55x28mm
4mm/5mm/6.5mm/8.5mm

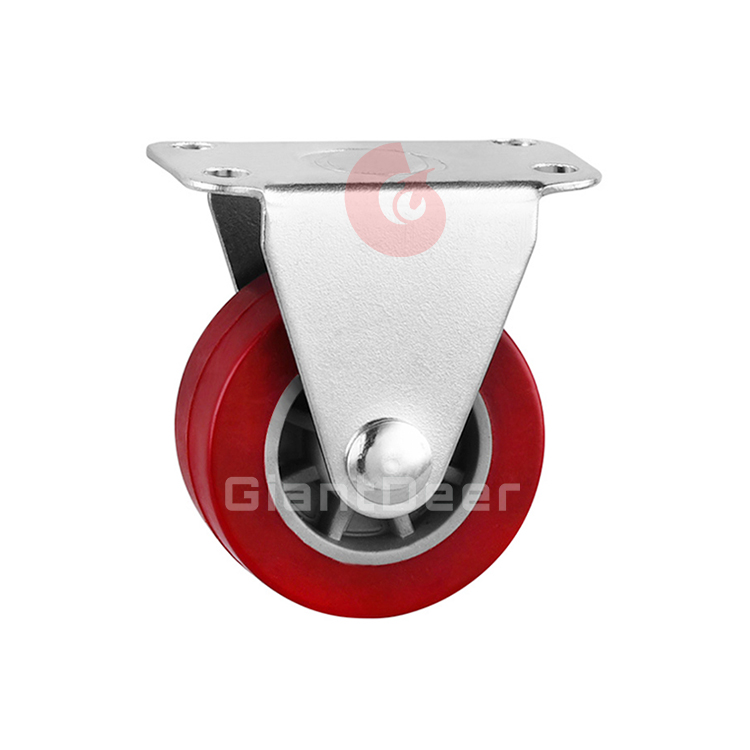

Fixed type
| Model |
Wheel Material
|
Wheel Diameter (mm) |
Wheel Width (mm) |
Loading Height (mm) |
Top Plate Size (mm) |
Hole Spacing Size (mm) |
Mounting Hole Size (mm) |
Loading Capacity (kg) |
GIDL06-1IN- DT | PU | 25 | 12 | 35 | 38*20 | 30 | 4 | 10 |
| GIDL06-1.25IN-DT | PU | 32 | 14 | 42 | 38*20 | 30 | 4 | 18 |
| GIDL06-1.5IN-DT | PU | 38 | 17 | 50 | 42*24 | 36*15 | 5 | 25 |
GIDL06-2IN- DT | PU | 50 | 20 | 65 | 60*40 | 45*25 | 6.5 | 35 |
| GIDL06-2.5IN-DT | PU | 65 | 27 | 84 | 70*48 | 55*28 | 8.5 | 55 |
GIDL06-3IN- DT | PU | 75 | 27 | 93 | 70*48 | 55*28 | 8.5 | 65 |
Additional information
√ Wheel Color: Red.
√ Metal Fork Color: Silver, customized.
√ Plate Size: Regular, customized.
√ Wheel Material: PU, customized.
√ Metal Fork Material: Galvanized iron, customized.
