We are specialized in Light Duty TPE Caster Wheel, which integrates research and development, design, production, quality control and marketing.
TPE
Galvanized iron
1Inch/1.25Inch/1.5Inch/2Inch
13mm/13mm/17mm/17mm
11kg/16kg/22kg/27kg
37.5mm/45mm/52mm/64mm
38x32mm/38x32mm/46x38mm/46x38mm
30x24mm/30x24mm/36x28mm/36x28mm
4.2mm/4.2mm/5.2mm/5.2mm

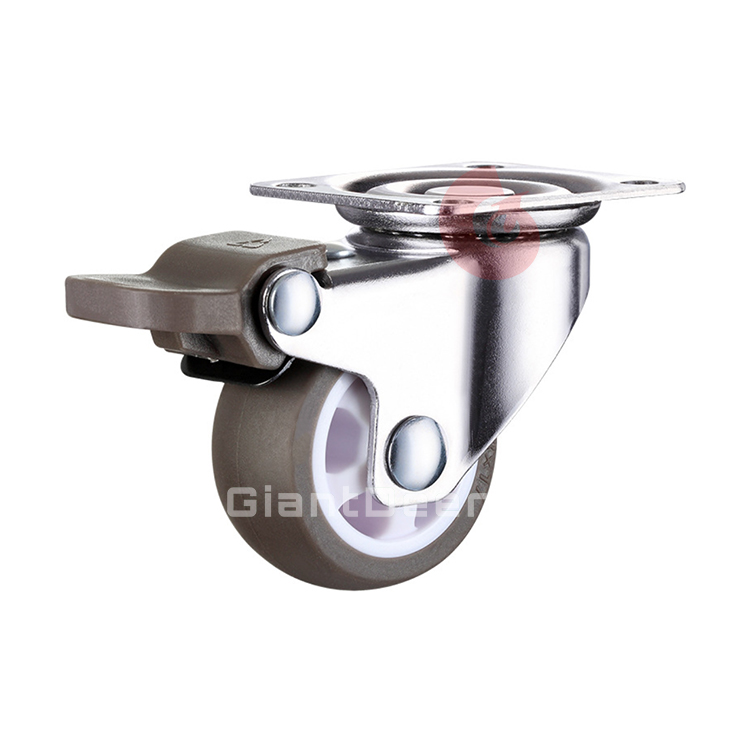

Swivel type with Brake
| Model |
Wheel Material
|
Wheel Diameter (mm) |
Wheel Width (mm) |
Loading Height (mm) |
Top Plate Size (mm) |
Hole Spacing Size (mm) |
Mounting Hole Size (mm) |
Loading Capacity (kg) |
GIDL08-1IN- FDB | TPE | 25 | 13 | 37.5 | 38*32 | 30*24 | 4.2 | 11 |
| GIDL08-1.25IN-FDB | TPE | 32 | 13 | 45 | 38*32 | 30*24 | 4.2 | 16 |
| GIDL08-1.5IN-FDB | TPE | 38 | 17 | 52 | 46*38 | 36*28 | 5.2 | 22 |
GIDL08-2IN- FDB | TPE | 50 | 17 | 64 | 46*38 | 36*28 | 5.2 | 27 |
Additional information
√ Wheel Color: Brown.
√ Metal Fork Color: Silver, customized.
√ Plate Size: Regular, customized.
√ Wheel Material: TPE, customized.
√ Metal Fork Material: Galvanized iron, customized.
